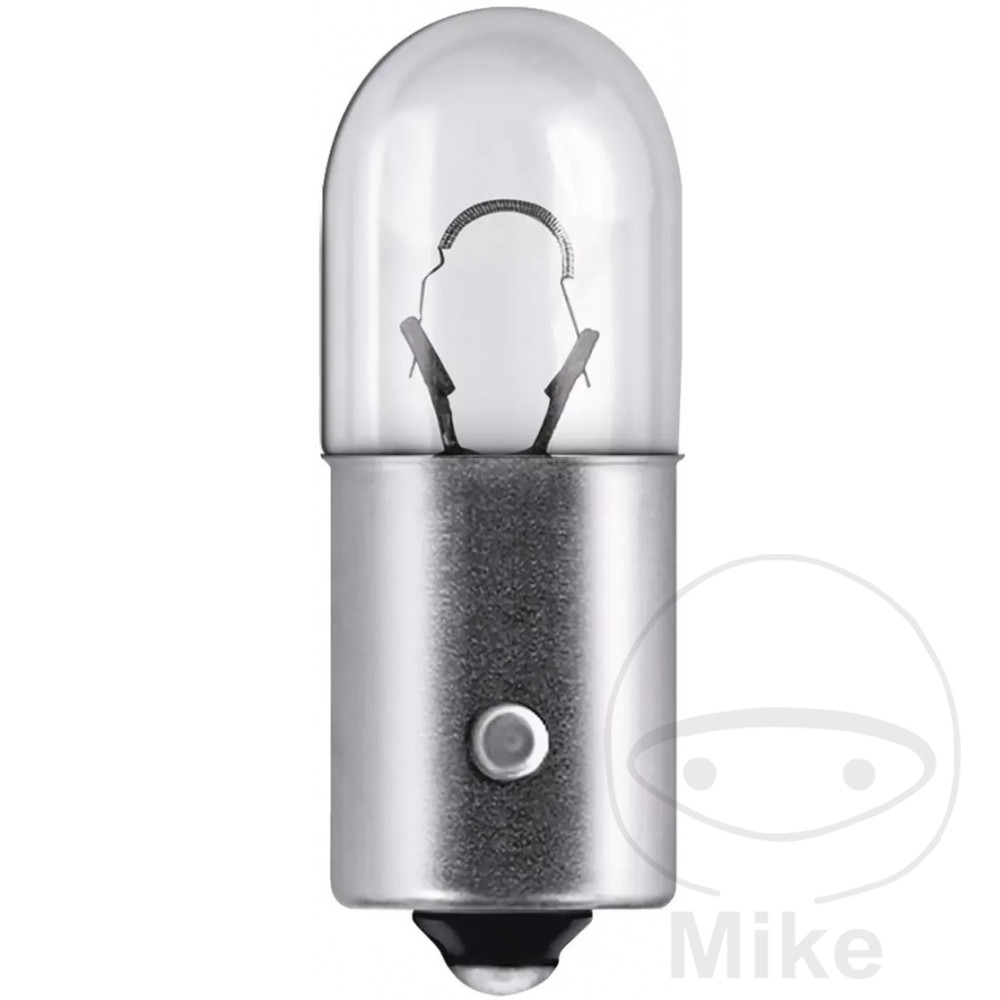

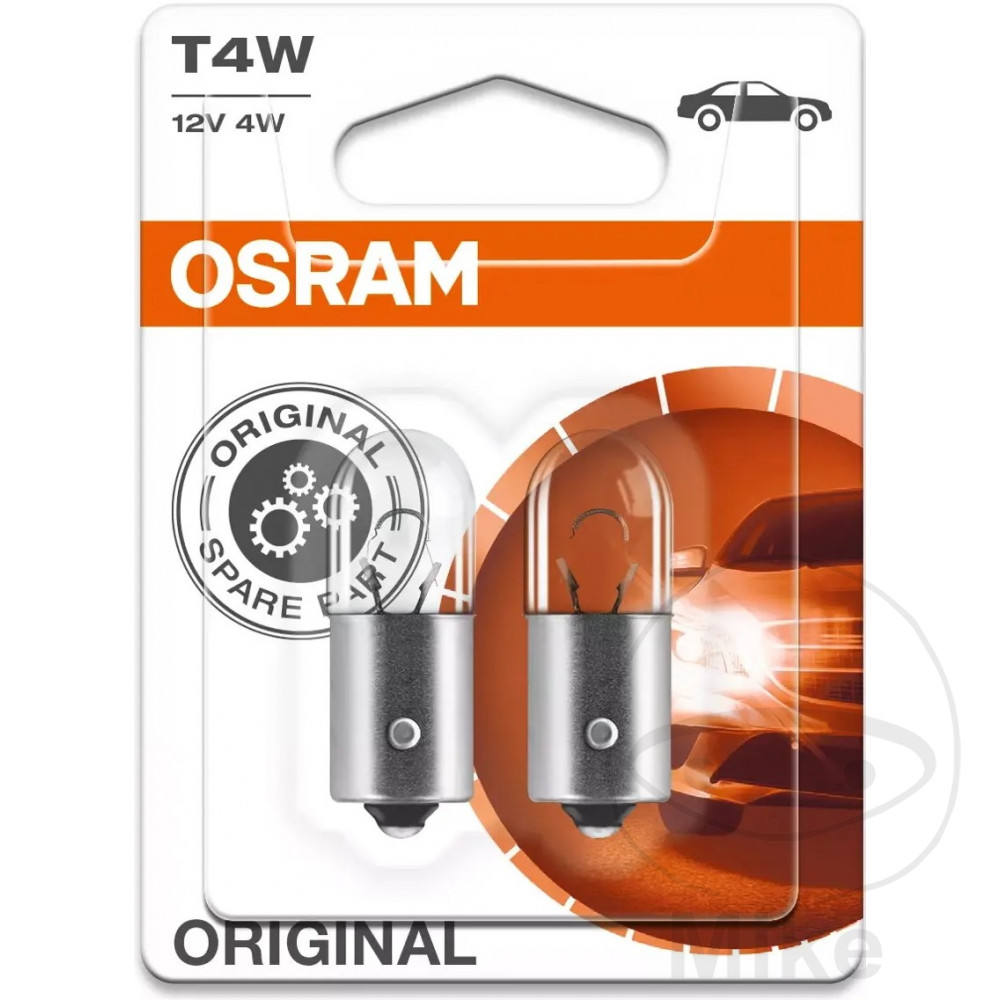

Lamps with metal bases T4W

Cost-effective original spare parts

• Like all ORIGINAL products from OSRAM, ORIGINAL signal lamps with metal bases offer reliable OEM quality.
• Thanks to the wide range of products, there are suitable original replacement lamps for almost every application.

Electrical data

• Max. Power consumption 4 W
• Nominal voltage 12.0 V
• Nominal power 4 W
• Test voltage 13.5 V
• Power consumption tolerance ±10 %

Photometric data

• Luminous flux 35 lm
• Luminous flux tolerance ±20 %

Physical attributes & dimensions

• Diameter 8.8 mm
• Product weight 1.86 g
• Length 27.4 mm
• Base (standard designation) BA9s

Service life

• Service life B3 600 hr
• Lifetime Tc 1200 hr

Certificates & standards

• ECE category T4W
• Test mark - approval E1 approval
• Environmental information according to Art. 33 of EU Directive (EC) 1907/2006 (REACh)
